Press Moulding Machine with Advanced Rubber Curing Press Hot Press Machine

Payment Terms : T/T

Maximum Extrusion Pressure : 32T/50T

Diameter of Mould : 9/12/14/16/18 inches

Supply Ability : 10 pieces

Thickness of Mould : ≤150mm

Price : $1600-$2300

Brand Name : Yunding

Frequency : 50/60Hz

Maximum Power : 4kW

Model Number : 980

Voltage : Can be customized

Packaging Details : Wooden box

Delivery Time : 20-25 days

MOQ : 1 piece

Place of Origin : Guangdong, China

Contact Now

Press Moulding Machine with Advanced Rubber Curing Press Hot Press Machine
Application
This press moulding machine is specially designed for the vulcanization and compression moulding of silicone rubber moulds. It is widely used for making moulds for jewelry, ornaments, craft items, badges, souvenirs, and other precision small products.
Precision & Temp Control
The mould plates are manufactured with high precision, ensuring excellent parallelism during pressing. This helps the silicone rubber mould receive uniform pressure, improving mould flatness and consistency. The machine features independent temperature control for the heating plates, allowing more accurate adjustment according to different rubber materials and mould requirements. This design improves heating uniformity and helps achieve stable vulcanizing results.

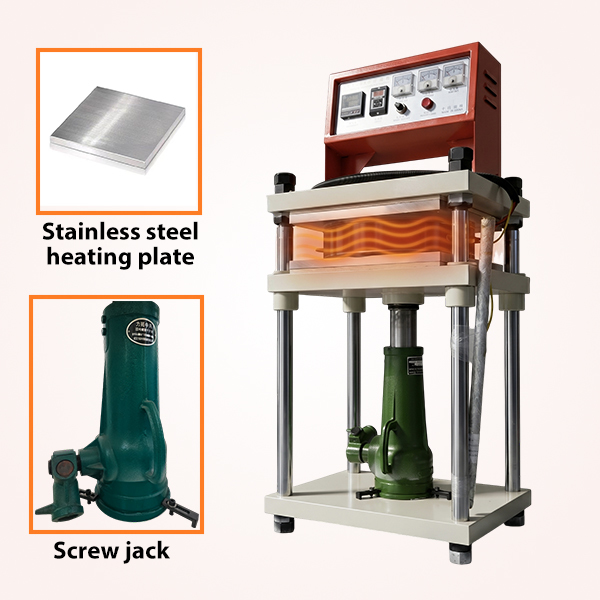

Heating Plate Material
The heating plates are made of stainless steel, offering strong corrosion resistance, good heat transfer performance, and a long service life. This makes the machine durable and suitable for continuous production.
Guide Structure
The machine adopts a copper sleeve guide structure, which provides smoother movement and improved wear resistance. This helps maintain pressing accuracy and extends the equipment's service life.
Control System
Equipped with an imported digital timer and digital temperature display, the machine is easy to operate for monitoring the moulding process. Operators can control heating time and temperature more accurately, improving production efficiency and reducing operating errors.
Process Matching
The die press is an indispensable machine in the centrifugal casting process. It is responsible for vulcanizing the rubber moulds, ensuring they can withstand the centrifugal force of the casting machine. This process requires additional equipment such as an electric melting furnace and a centrifugal casting machine.
Specification & Operability
Available in multiple models such as 9-inch, 12-inch, 14-inch, and 16-inch, the machine can meet different mould production requirements. With its practical structure and user-friendly control system, it is suitable for both experienced operators and beginners.
